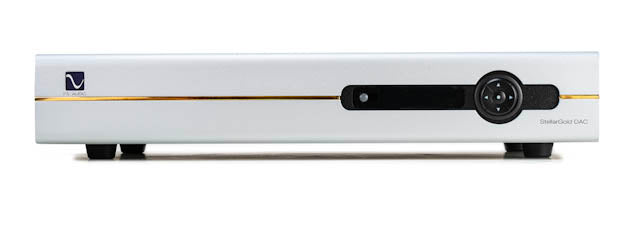

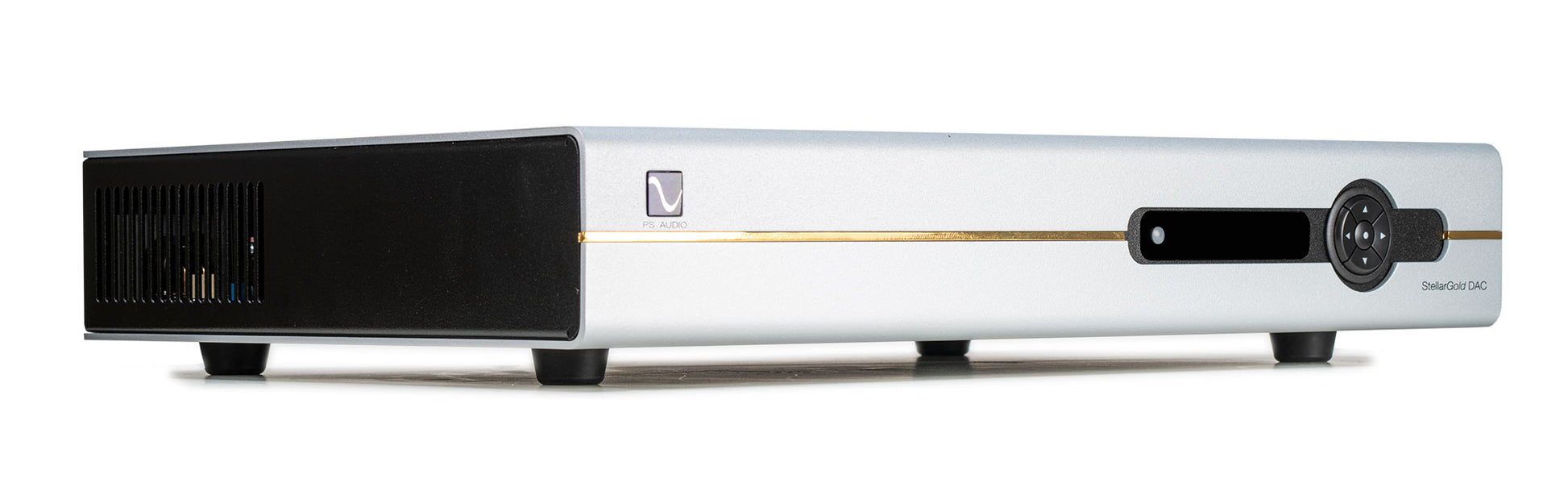

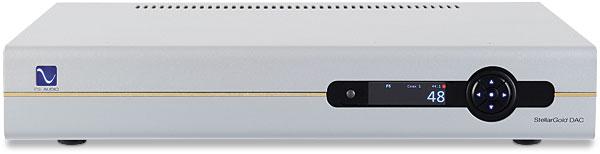

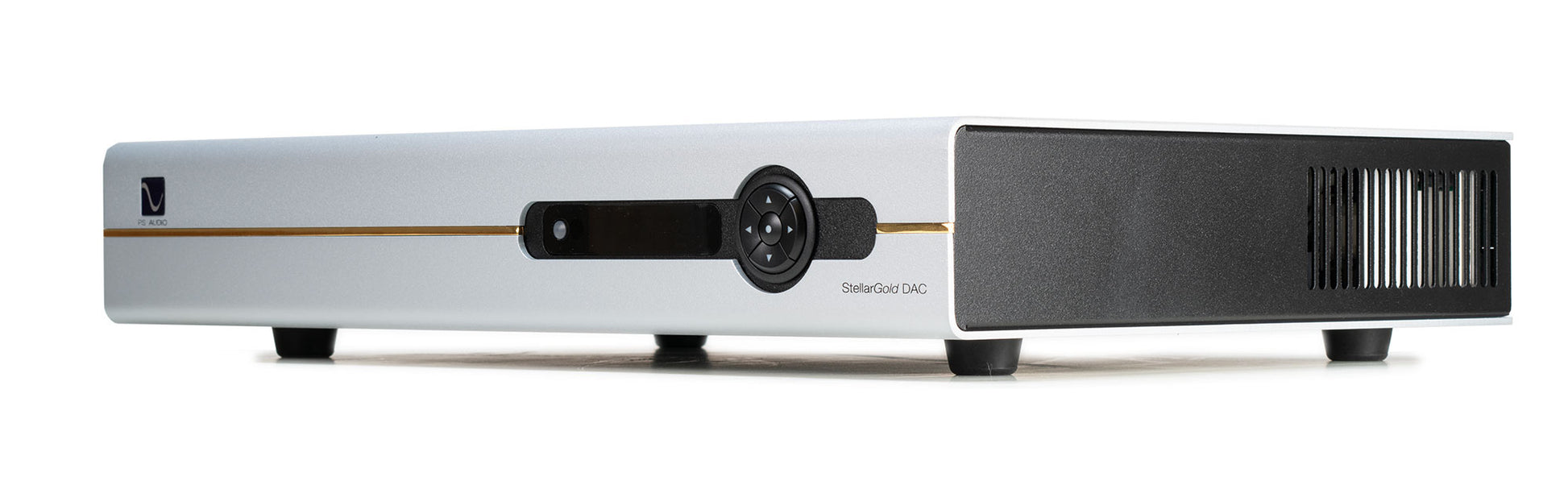

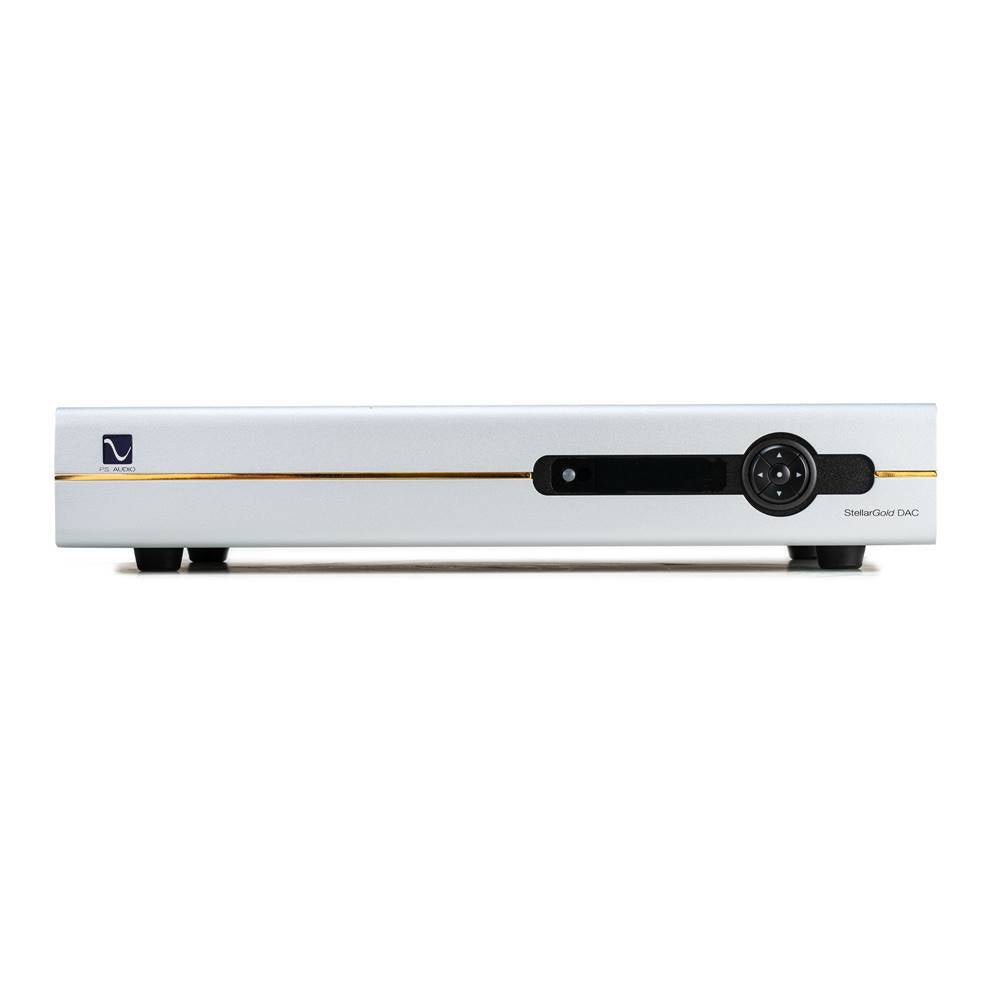

StellarGold DAC
StellarGold DAC
Once in a great while, an exciting new product design direction comes along that really sets a new standard for performance within a price range. Such is the all new StellarGold DAC, a product that will raise the bar for any digital to analog converter at anywhere near the price.
What makes the new StellarGold DAC unique is its use of multiple parallel DACs. Each channel of the StellarGold is built by paralleling 4 high resolution digital to analog converters, then feeding the combined output of these DACs into an all new discrete class A analog output stage. The results are nothing short of stunning.
The use of multiple high-precision DACs to form one ultra-linear channel has the advantage of lowering noise and channel crosstalk while at the same time increasing linearity, dynamic range, and resolution beyond what any single DAC technology can achieve. One listen to this amazing new DAC and you'll know why it easily outperforms single DAC designs.
Regular price
$3,999.00 USD
Regular price
Sale price
$3,999.00 USD
Unit price
per
TALK TO A HI-FI SPECIALIST
Octo DAC, Diamond performance
The StellarGold DAC is an extraordinary feat of engineering. By combining the outputs of four high-performance D to A converters for each channel, the StellarGold DAC achieves extraordinarily low noise and distortion that rivals any DAC at any price. Combine its state-of-the-art performance with its fully discrete, wicked fast, class A gain stage and you find StellarGold to represent one of the best sounding components in your system. Come learn more about this extraordinary DAC.
-
Design
-
Application
Technology
Features
Specifications - StellarGold DAC
Physical: | |
Unit Weight | 22.5 lbs [10.2 kg] |
Unit Dimensions | 17"W x 3"H x 12" D [43.18 cm x 7.62 cm x 30.48 cm] |
Shipping Weight | 26 lbs [11.8 kg] |
Shipping Dimensions | 22"W x 8"H x 17"D [55.88 cm x 20.32 cm x 43.18 cm] |
Color Options |

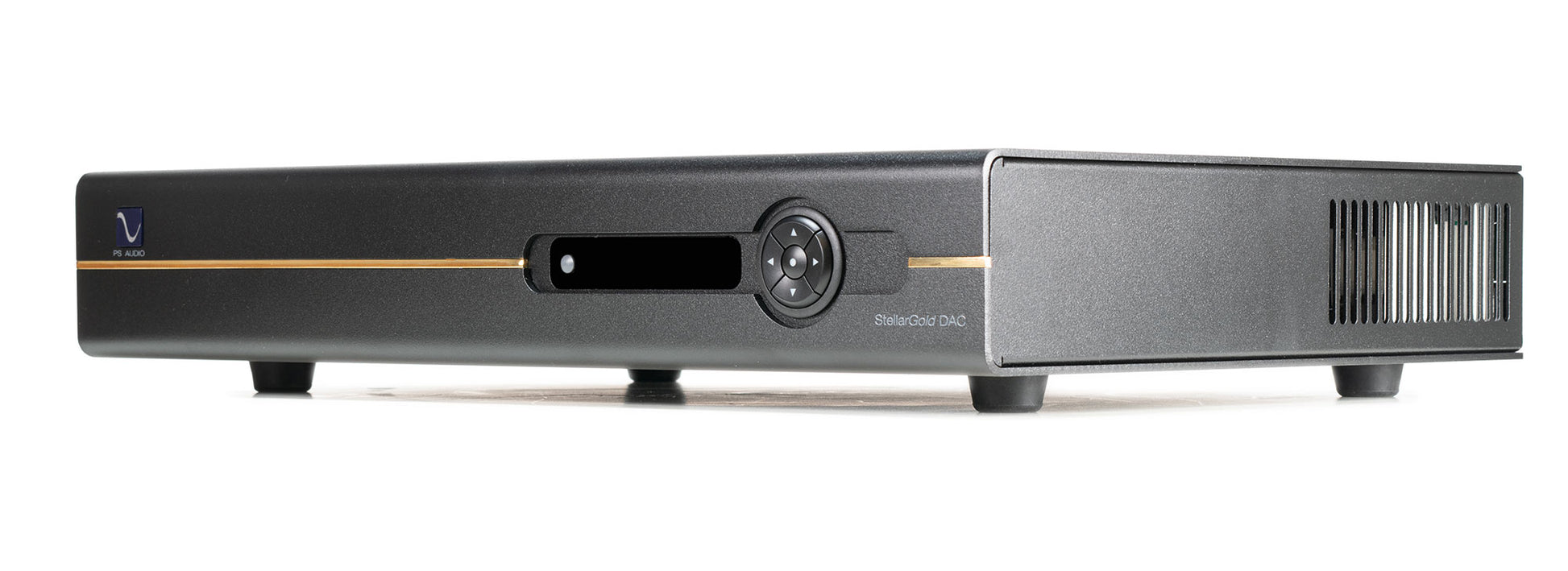

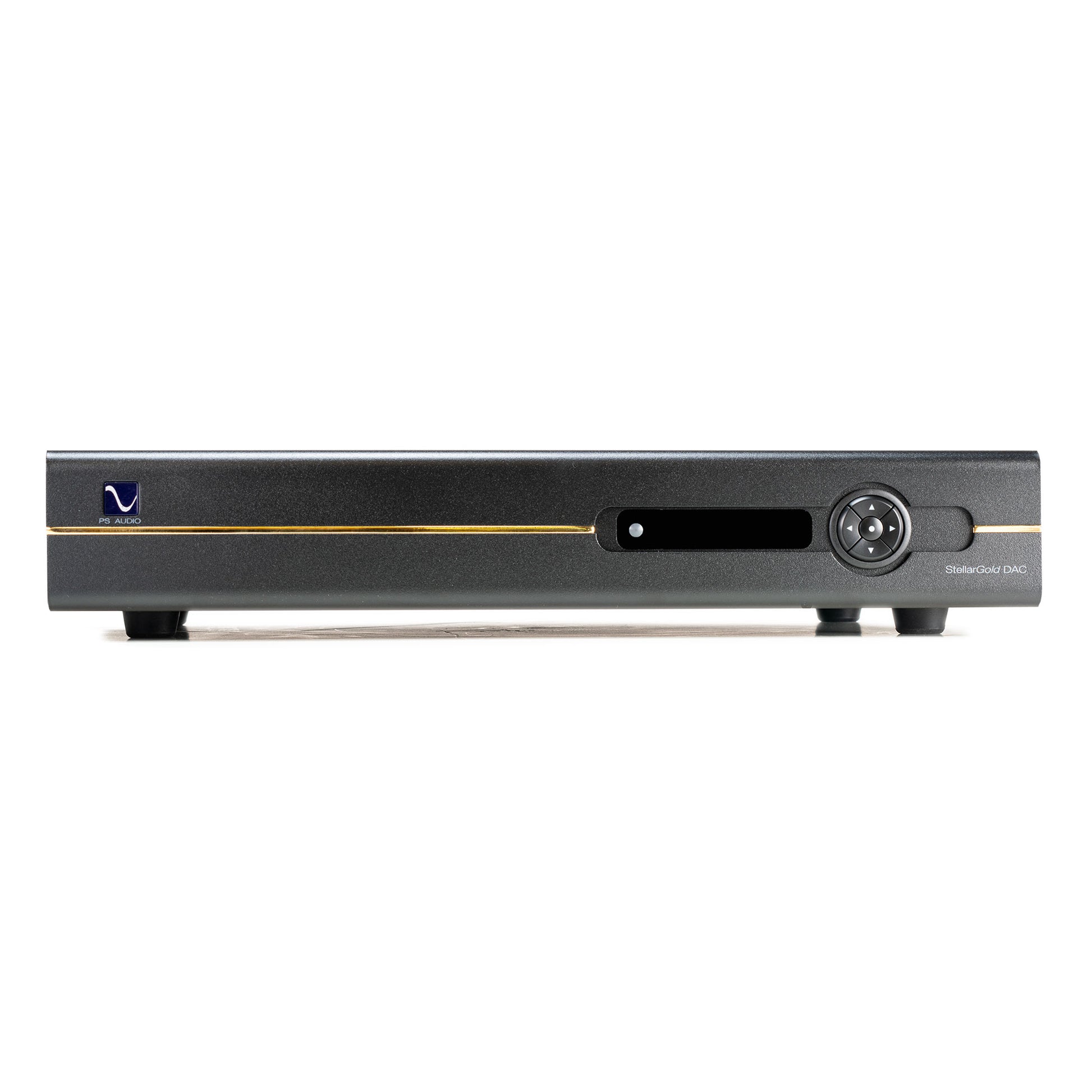

Black |
Power Requirements: | |
Input Power | Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz |
Power Consumption | 30W |

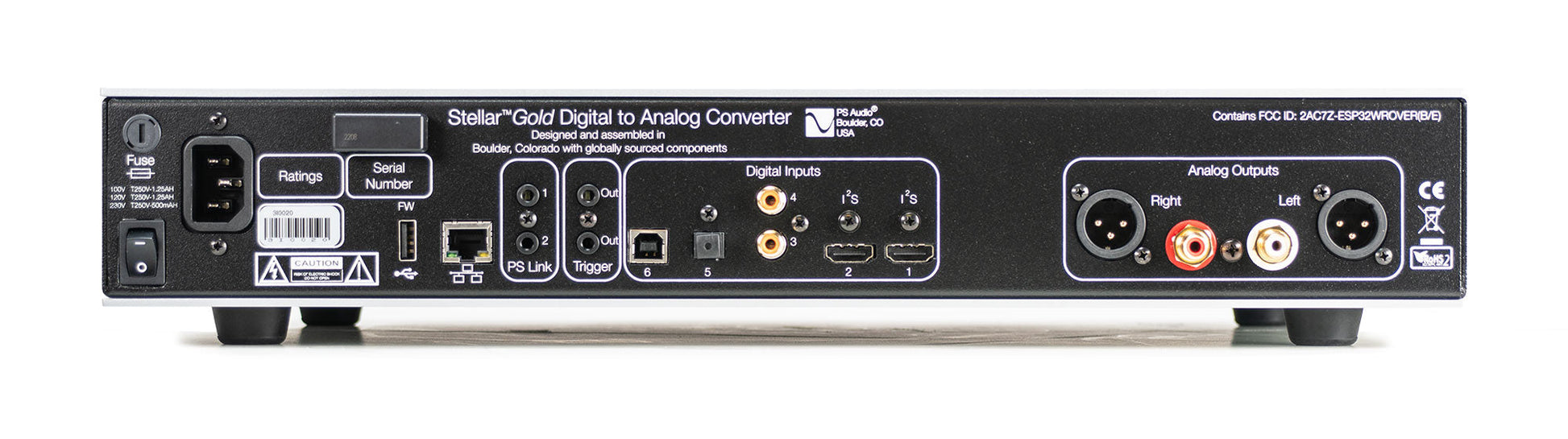

Digital Audio Inputs |
I2S (2), Coax (2), Optical, USB |
Sample Rates | Optical (TOSLink): PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz and 96kHz S/PDIF (Coax): PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz; DoP64 I2S: PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 705.6kHz, and 768kHz; DoP64, DoP128, DoP256, DSD64, DSD128, and DSD256 USB: PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz; DoP64, DoP128, DSD64, and DSD128 |
Analog Audio Output | |
Output Stage | Discrete fully balanced JFET BJT hybrid |
Connector | RCA single ended, XLR balanced |
Output Level High, Maximum | 4 VRMS Balanced 2 VRMS Single Ended |
Output Impedance | 100Ω / 200Ω |
Frequency Response | 20Hz-20kHz, +/- 0.1dB; 10Hz-70kHz, -1dB |
Max Output | 4V RMS Balanced, 2V RMS single-ended |
THD+N @ 1KHz (full scale) | <0.002% at full output |
IMD | <0.002%, CCIF, at full output |
SNR | >127dB, referenced to 4V RMS |
Data Handling | |
Format | PCM or DSD |
Sample Rate (PCM) | 44.1kHz, 48.0kHz, 88.2kHz, 96.0kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz |
Data Rate (DSD) | Up to DSD256 (11.2MHz) via DoP and Native DSD1024 |
Digital Volume Control | Yes |
Analog Conversion Method | ES9038PRO DAC |
I2S Digital Input: | |
Connector | HDMI |
Format | PCM or DSD. DoP on all inputs as well as native DSD on 12S inputs |
USB Digital Input | |
Connector | USB "B" Type |
Format | PCM, DoP v1.1 (DSD over PCM), or Native DSD |
Transfer Mode | Asynchronous |
