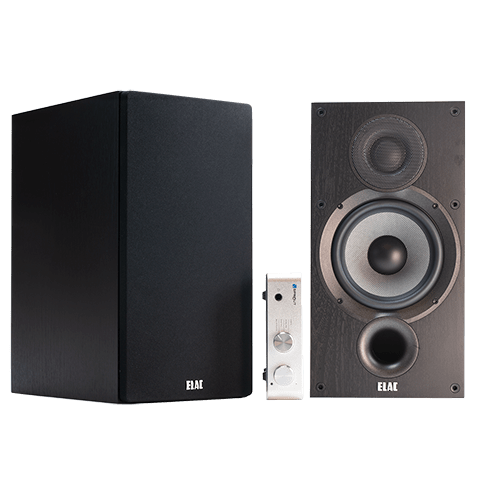

Sprout100 + ELAC Speakers
Sprout100 + ELAC Speakers
The perfect music system for any home. Sprout, PS Audio's killer integrated teamed up with a pair of Germany's ELAC loudspeakers and Emotiva cables. Everything you need. Bring this hand selected affordable package into your home today. Sets up in just minutes.
The Sprout100 Elac package brings audiophile sound without the audiophile complications. Sprout100 is an overachiever—a single piece of audio gear offering a wealth of connectivity and great sound in a chassis the size of a hardcover novel. However you like to listen—streaming, LPs, CDs, or digital audio from your computer or game console—Sprout100 is designed to handle it. To match with Sprout100, we hand-selected Elac’s B6.2 speakers. Matching the ethos of Sprout100, the B6.2s are also overachievers, performing far beyond what their price tag might convey. The pair together truly sings, letting you explore your music like you never have before. Don’t worry, we included speaker cables too; you’ll be up and running in 10 minutes or less.
Regular price
$1,099.00 USD
Regular price
Sale price
$1,099.00 USD
Unit price
per
TALK TO A HI-FI SPECIALIST
-
Design
-
Application
Technology
Features
Specifications - Sprout100 + ELAC Speakers
Physical |
|
Unit Weight | 2.9 lbs [1.3 kg] |
Unit Dimensions | Width 6.2", Height 1.9", Depth 8.2" (chassis only, not including knobs) or 9.2” (including connectors and knobs) |
Shipping Weight | 5lbs [2.2 kg] |
Shipping Dimensions | Width 10.5", Height 5", Depth 14" |
Power requirements |
|
Voltage Options | 100-240 VAC, 50-60Hz, Auto-Detect |
Power Consumption | 280W Maximum |
Mains Power Input | IEC C14 |
Phono Audio Input |
|
Connector | 1 Stereo Pair, Phono RCA |
Cartridge type | Moving Magnet |
Cartridge Output | 3mV-10mV (5mV recommended) |
Cartridge Loading | 47KΩ (100pF) |
EQ Type | RIAA |
Gain | +40dB |
S/N ratio | >84dB A-weighted (analog output) |
Analog Audio Inputs |
|
Connector | 1 Stereo Pair, Line Level RCA |
Maximum Input level | 2.1VRMS (+6.44dBV) |
Input impedance | 10KΩ |
Analog Audio Output |
|
Connector | 1 Stereo Pair, Line Level RCA |
Output level, maximum | 3.0VRMS (+9.5dBV) |
Output Max Gain (using Analog Inputs) | 8.45dB |
S/N ratio | >105dB (3VRMS ref) |
THD (Analog) | <0.01% (1VRMS, 1KHz) |
S/PDIF Digital Input |
|
Connector | Optical (Toslink) |
Format | PCM (96KHz max), 24 bits |
USB Input |
|
Connector | USB “B” Type |
Format | PCM (384KHz max), 24 bits, DSD64 (DoP), DSD128 (DoP) |
Transfer mode | Asynchronous |
Bluetooth |
|
Antenna | Built in |
DAC | Uses Sprout's built in asynchronous DAC over S/PDIF (ESS Sabre 9016 DAC) |
Stereo Power Amplifier Output |
|
8Ω loudspeakers connected | 50 watts per channel, both channels driven |
4Ω loudspeakers connected | 100 watts per channel, both channels driven |
THD (Speaker Output) | <0.01% (1W, 1KHz into 4Ω) |
Frequency Response | +/- 1dB (1VRMS out, 20Hz – 20Khz into 4-8Ω) |
Signal to Noise | >100dB at max power into 4Ω |
Headphone Output |
|
32Ω headphones connected | 500mW |
300Ω headphones connected | 125mW |
THD | <0.01% (1KHz, 50mW into 32 Ω) |
