Most of us squander far too much of our time engaged in “self-talk.” Our minds are continually preoccupied with “what if” scenarios and how to resolve them, even though these scenarios seldom materialize. From an evolutionary perspective, predetermined responses to potential threats is an effective survival strategy, but it also keeps our minds trapped in the temporal plane of existence.
A koan is a Zen Buddhist tool designed to help the devotee transcend the temporal plane. It usually takes the form of a question. For example, “What is the sound of one hand clapping?” The mind doggedly seeks an answer, but there is none. That’s the point, to tie the logical mind into such a knot that it short-circuits the endless flow of self-talk. Once the mind is in a state of “non-thinking,” it is free to experience bliss.
Pondering the sound of one hand clapping has never led me to bliss. Neither has contemplating whether or not a tree falling in the forest makes a sound if there is no one around to hear it. Koans frustrate me like child-proof containers.
Music is my koan. It wipes out self-talk like bleach washes away stains. It can carry me from the mundane to a state of transcendental bliss faster than Owsley’s elixir. Twenty minutes in that state is as refreshing as a good night’s sleep.
But it’s not sleeping, as my wife once assumed. She would see me motionless in my recliner for most of a symphony and believe I was dozing. One day, she decided to walk across the listening room. As soon as she blocked the sound of one speaker, I addressed her, eyes still closed, “Hi sweetie.” She was startled. I was meditating, not comatose.
If music is my koan, then my music system is my guru. I want to hear it as clearly and unambiguously as possible. Finding the right guru has been a long search.
Like most audiophiles, my first few systems consisted of off-the-shelf components that did some things well, and other things not so well. Over the years, I traded up to more expensive equipment that did other things well, but then I would miss some of the things at which my old systems excelled.
So I started scrutinizing components. It didn’t take long to determine that electronic components which offered a neutral response, and distortion and noise below audible levels, sounded similar. By definition, they should. (The only qualifier is that they must have sufficient power to drive the load.)
That wasn’t the case with loudspeakers. At the dozen or so Consumer Electronics Shows I attended in Las Vegas, I found that most loudspeakers sounded radically different from one another – even if their manufacturers professed similar design objectives.
Surprisingly, the most expensive speakers were seldom my favorites. As they rarely won “Best Sound of Show” awards, others must have felt likewise. Audiophiles choose what elements of reproduced sound are most important to them, and prefer a system which caters to those preferences. The choice of best loudspeaker, like best restaurant or movie, is dependent on the sensibilities of the beholder.
My sensibilities must be idiosyncratic. I never found a speaker system at the CES that did everything I sought. Like the systems I’d owned in the past, they usually did some things really well, and other things not so well, regardless of their price. In the next room, those strengths and weaknesses might be reversed.
When I realized this, a light went off. Why not build a custom speaker system catering to my particular sensibilities?
I attended the next CES with a single-minded purpose, to discover my personal preferences. As I auditioned various systems, I wrote pages of notes. When I reviewed them in the evening, these patterns emerged:
– 3-way/3-driver systems sounded cleaner to me than systems using more (or fewer) drivers.
– High-efficiency systems seemed more resolving at low volumes, better at holding a note’s decay to its natural conclusion, and more dynamic than less-efficient systems.
– Wide cabinets appeared to offer superior midrange dynamics.
– The smoothest high frequencies emanated from ribbon tweeters.
– Big bass-reflex bins utilizing large, low-excursion woofers best reproduced effortless, natural-sounding bass.
– Except for those with paper cones, highly-resolving midrange drivers soon became fatiguing.
The loveliest midrange frequencies emanated from a system that had no midrange driver at all. No, it wasn’t a 2-way system. It came from a single, full range paper driver designed to cover the entire frequency spectrum. This driver turned coarse at high frequencies (where it broke up) and produced no real bass, but the midrange resolution and imaging were enchanting. I was able to buy a matched pair from the exhibitor.
The most effortless deep bass I heard filled the room of a European exhibitor. His system employed 15-inch Italian woofers in large, bass reflex cabinets. He was kind enough to provide the information I needed to source a pair.
The smoothest high frequencies came from the Dutch-made, ribbon tweeters utilized in an expensive American system. The manufacturer made a pair available to me.
Once I had the drivers, it was time to acquire the cabinets. I’d planned to construct them myself, but with a stroke of luck, I came across a pair of 7-cubic-foot bass bins originating from a recording studio. They weigh over 200 lbs. each and are much better built than my limited carpentry skills and equipment would allow. All I had to do was tailor the ports and internal damping to my Italian drivers.
The ports were easy, there are formulas for that.
The internal damping took several months. Too much and the sound was lifeless. Too little and the bass sounded like it was coming from a bathroom. I tried foam, shredded cotton, wool felt, and various types of fiberglass damping material. The most natural bass resulted from employing 2-inch Owens Corning 705 high-density fiberglass. This is the yellow stuff often found behind ovens and fridges (nasty to work with; wear gloves and a respirator). I covered all four interior surfaces of the bin, and placed a large piece across the diagonal to discourage standing waves.

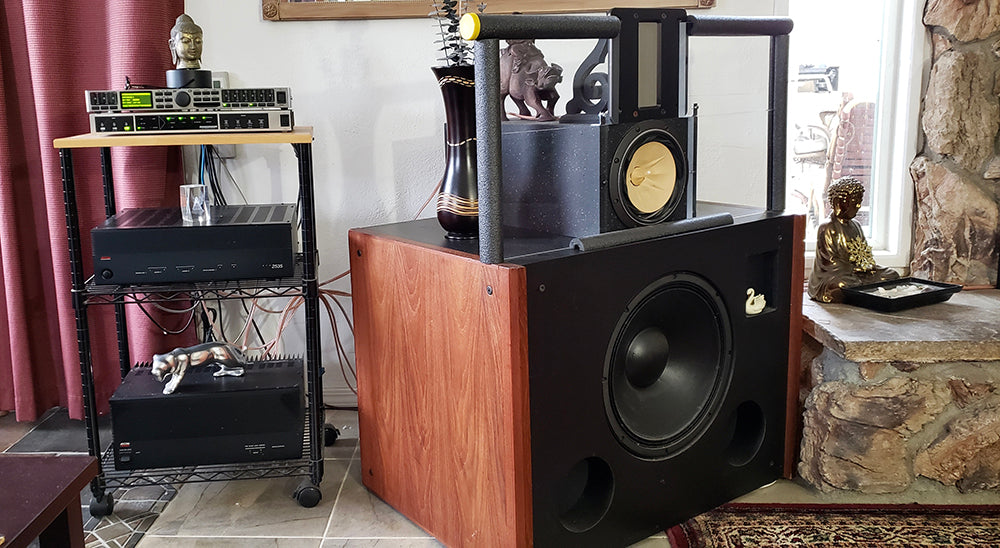

The midrange boxes are re-purposed EPI 100 loudspeaker cabinets. I removed the drivers, covered the baffle with MDF, and laid them face down. Then I cut a hole in what was the top to accommodate my 8-inch midrange driver. There is a similar hole in the other end (backside). The cabinets are stuffed with increasing-density damping material like a transmission line. That way, the back waves have no opportunity to reflect back into the lightweight cone to cause distortion.
The heavy ribbon tweeter is simply set on top of the midrange driver and braced. Being a line source, it has controlled vertical dispersion. This design keeps high frequencies from bouncing off the ceiling and floor.
Diffraction causes sound waves to re-radiate from cabinet edges and splash off nearby surfaces. It makes drivers sound muddy. The custom-cut plexiglass baffles in the photo extends the baffle size and drops the diffraction frequencies to a point below where they are most audible. The foam trim mitigates the remaining diffraction.
The wide baffles also direct the sound energy towards the listener for superior dynamics. A light bulb mounted against a white wall (rather than hung in the middle of the room) directs light in the same way.
Once the drivers and cabinets were sorted out, the next challenge was the crossover. I studied passive crossover networks for months and built several, but was never satisfied with the results. That could have been due to my lack of expertise and experience, or, as an electronics engineer friend suggested, the inherent limitations of passive-crossover design.
At his urging, I purchased an active digital crossover. It splits each stereo channel into three signals: bass, midrange and highs. After processing, these signals are fed into six amplifiers, one for each driver (four 60-watt amps in the top amp, two 200-watt bass amps in the bottom). This way, there is nothing between the amps and the drivers except the speaker cables. It allows the amps to do their best work. Complicated passive crossovers can suck the life out of amplifiers and dull the sound.
Because active crossovers are capable of steep slopes, there is little intermodulation distortion between the drivers, and they can be crossed-over closer to the edge of their bandwidths without hitting their breakup or resonance modes.
Another benefit of a digital crossover is how easily crossover frequencies and slopes can be manipulated. I set mine “by the book” initially, then tweaked until I got the sound that most pleased me.
My crossover unit includes digital equalization (EQ). I use it to compensate for room modes and disparate speaker placement. Without such equalization, the most accurate speakers in the world will sound colored in most domestic rooms. For example, in a recent issue of an audio mag, the in-room frequency response of a well-reviewed pair of $100,000-plus loudspeakers showed a 15 dB variation in bass response. Making accurate assessments of any audio product with such a handicap is like testing a sports car in a hockey rink.
EQ can also compensate for poor recordings. Some of my favorite recordings from the 1960s were mastered with too much mid-bass, a midrange peak for “presence,” and treble frequencies accompanied by lots of distortion. On a highly resolving system, they are unlistenable. Applying some EQ can make those oldies bearable.
I talked about acoustics in my previous article (in Issue 195). Fortunately, the fireplace between my speakers provides the diffraction that acoustician Anthony Grimani recommends. The remaining walls feature homemade acoustic panels which absorb midrange and high frequencies much like the air in a large symphony hall. In acoustic terms, they make my room much larger.
My goal was to re-create (in-home) a sound that most closely approximates the experience of a concert hall. I failed miserably. No one will ever mistake the sound in my little room for the glorious sound of a symphony hall. The laws of physics preclude it. But I got closer than any other system I’ve heard in an equivalently sized space.
B. Jan Montana's completed audio system.
A few internationally well-known audio engineers and manufacturers have also auditioned my system. These were their responses:
“I was impressed with Jan’s system when I visited his home. It was very well balanced, clean, and had excellent imaging. He played a choral piece that was particularly impressive. He did a great job on his system!”
“One of the best dynamic loudspeaker systems I’ve heard. The imaging is startling.”
“This is among the lowest-distortion systems I’ve listened to, I’ll bet it’s under 1 percent all the way to the lowest notes.”
“This system sounds like live music. The bass is as realistic as I’ve ever heard in-home.”
“I have no idea how you get such analogue sound from a completely digital/solid-state system.”
It’s one thing for an amateur to wing his way through the world of acoustics and speaker building for home use. It's another to have those efforts applauded by esteemed professionals. I’m grateful to all those who helped in print, in videos, or in person.
